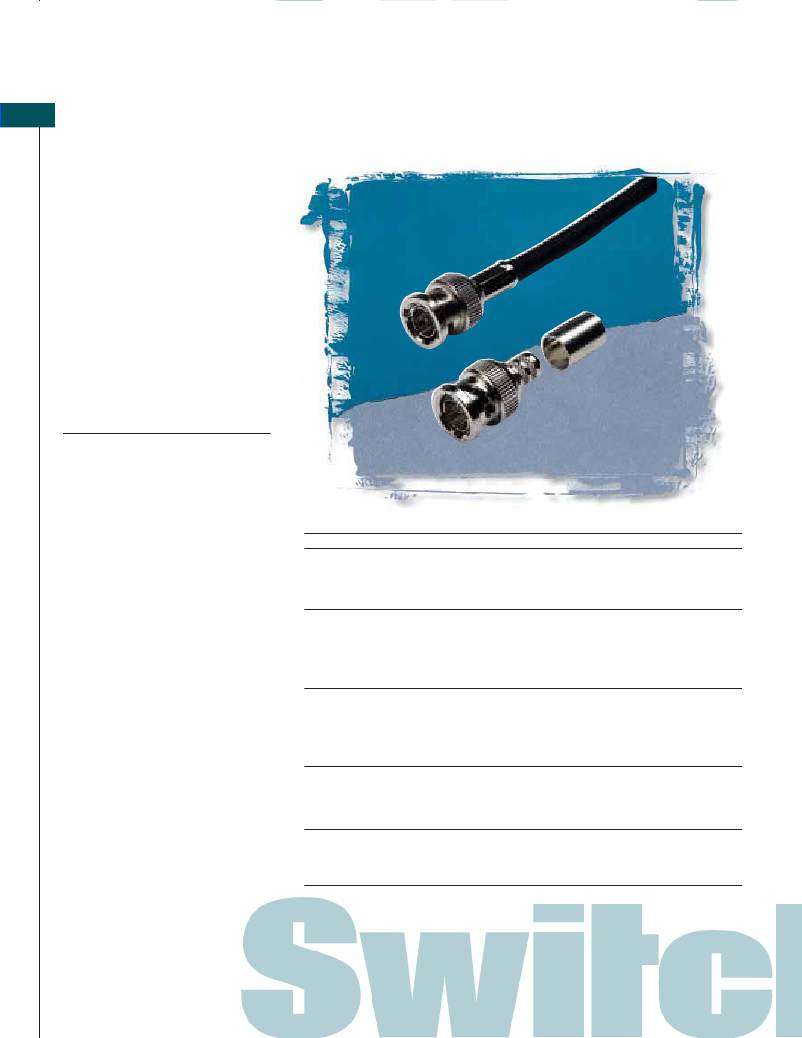

HP75BNC Series
True 75 Ohm BNC Series
The HP75BNC Series is a true 75
Ohm impedance BNC connector
series. All connectors meet stringent
guidelines for top performance. The
HP75BNC Series is available in a
wide variety of cable types. All use
standard crimping tools.
Features and Benefits
? True 75 Ohm impedance
? Rugged nickel-plated, machined
housings
? Gold-plated center pins enhance
performance
Specifications
Electrical
Contact Resistance: 75 Ohms
Voltage Rating: 500 Volts RMS
Return Loss: Less than -25 db
at 3 GHz
HP75BNC1
Ordering Information
Insulation Resistance:
Part Number Crimp Info
Cable Type
5000 Megohms minimum
Mechanical
Lifecycles: 500 minimum
HP75BNC1
Pin .041 Hex
Ferrule .255
Belden 8241, 8279, 82241
Gepco VJ59U
Comm/Scope 5563
Center Contact Retention:
6 lbs. minimum
Coupling Mechanism:
100 lbs. minimum
Force to Engage:
HP75BNC2
Pin .041 Hex
Ferrule .324 Hex
Belden 8281, 8281B, 9141, 88281, 9231, 8141,
9118, 9248
Gepco VP618PE, VP618PVC, VP6000
Comm/Scope 7501, 7506
2.5 lbs. maximum
Environmental
Thermal Range: -65?C to 165?C
Moisture Resistance: Mil Std 202
Corrosion: Mil Std 202
HP75BNC7
Pin .041 Hex
Ferrule .278 Hex
Belden 1694A, 1695A, 87120, 89120, 9066, 9114, 9659
Gepco VSD2001, VSD2001TS
Comm/Scope 5729 ,5765, 2227K, 2227V, 2229V,
2275V, 2276V, 2279V
Flammability: UL 94-V0
Vibration: Mil Std 202
Solvent Resistance: Mil Std 202
Finish
HP75BNC9
Pin .041 Hex
Ferrule .255 Hex
Belden 1505A, 1506A, 8212, 8241F, 9167, 9259,
Gepco VPM2000, VPM2000TS, VPM2000TK
Comm/Scope 2000, 5553, 5565, 5572
Body/Bayonet: Nickel-plated,
copper alloy
Center Conductor: 50 mi
gold-plated copper alloy
HP75BNC12
Pin .041 Hex
Ferrule .178 Hex
Belden 1855A, 1865A
Gepco VDM230, VDM250, RGB230/250 Series
Comm/Scope 7537, 7538
See Next Page for
Mechanical Drawings
